Types of Stairs

When talking with customers regarding stairs and railings, it is helpful if we all use the same terminology. There are many types of stairs that we can build or add railings to. The following list describes some of the more popular stair types:

Straight Stairs

Straight Stairs

Example Straight Stair

Straight stairs are certainly one of the most common types of stairs found in both residential and commercial properties.

Advantages of straight Stairs:

• Straight stairs tend to be the easiest to go up and down or ascend/descend as we say in the industry.
• They are typically the easiest to build however this depends allot on the level of detail in the design.
• Straight stairs only need to be connected at the top and the bottom (no intermediate supporting structure is required).
• They work well with minimalist designed homes due to their inherent simplicity.
• By selecting thinner treads, open risers and thin metal stringers, straight stairs can be made more transparent than other types of stairs allowing less obstruction to the view beyond.
• No landing is required if the number of risers are kept under 16 or the overall vertical height is less than 12 feet.
• Its relatively easy to build railings and handrails for straight stairs.
• Measuring for railings is simpler also.

 Disadvantages of straight stairs:

• Straight stairs use up a fair amount of linear space which has to be planned for in your design.
• Some of the other stair types create a privacy barrier between the floors of your home. Straight stairs do not offer this privacy.
• A stair 12 feet high requires a landing to break up the span. The addition of a landing will use up allot more space and therefore these types of stairs are seldom used in residential construction. You will see these more frequently in large commercial buildings.

Straight Stair with central landing.

Example Straight Stair with Landing

L Shaped Stair (or sometimes called quarter turn stairs)

The L shaped stair is a variation of the straight stair with a bend in some portion of the stair. This bend is usually achieved by adding a landing at the bend transition point. The bend is often 90 degrees, however it does not have to be. If the landing is closer to the top or bottom of the stairs it is sometimes referred to as a long L stair.

L Shaped Stair

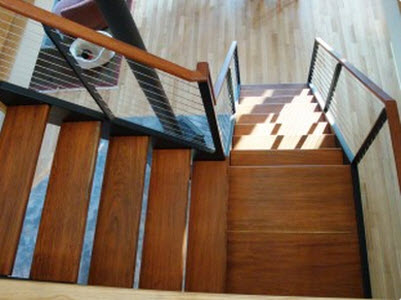

Example L Shaped Stair

 Advantages of L shaped Stairs:

• L Stairs can be more visually interesting.
• They provide a visual barrier between floors so they can add some privacy.
• Also L Stairs can help somewhat with sound transmission between floors if the stairs are contained within walls.
• Some believe they are safer than straight stairs as the central landing reduces the number of treads one could fall in a given flight.
• The landing can provide a place to stop and rest while ascending.
• They can be located in a corner of a room if this works better for your design.

 Disadvantages of L shaped Stairs:

• L shaped stairs are a bit more difficult to build.
• A support is typically required for the landing in a L type stair. Often this is built into the surrounding walls so it goes unnoticed. In modern dwellings however it is usually desirable to open up the space leaving the stair structure visible. In these cases the supporting structure can be visually minimized by taking advantage of the strength of steel to create slim supporting members. Through careful engineering,it is possible to eliminate the landing support all together.
• Handrails for these types of stairs require more skill and planning to construct.
• In climates where basements are used, stairs are typically stacked over each other for efficient use of space. Since basements are often used for storage, large items can be difficult to move in and out of the basement.

U shaped Stairs (or sometimes called half turn stairs or switchback stairs)

U Shaped stairs are basically 2 parallel flights of straight stairs joined by by a landing that requires 180 degree turn in the walk line. If a third flight is inserted into the middle of the stairs, it would become a double L stair (or quarter landing).

U – Shaped Stairs

Example U Shaped Stair

Example Quarter landing stairs

Quarter Landing Stairs

Advantages of U shaped Stairs:

• U shaped stairs can be easier to fit into an architectural plan.
• They offer some architectural interest.
• The landing(s) can offer a resting point part way up the stairs.

 Disadvantages of U shaped Stairs:

• These types of stairs are a bit more difficult to build.

Winder Stairs

Winder stairs are a variation of an L shaped stair but instead of a flat landing, they have pie shaped or triangular steps at the corner transition.

L Shaped Winder Stairs

Advantages of Winder Stairs:

• The main advantage of winder stairs is that they require less space than many other types of stairs. They are very common in older homes, often used as a secondary staircase where the grand staircase may have been in the entry and the winder used as a access to the kitchen.
• They have more visual interest. Winder stairs seem to create a more seamless transition,visually, as they meander around corners. For this reason they have gained popularity in modern homes.  Their compactness has also made them attractive in sustainable home designs.

Disadvantages of Winder Stairs:

• Winder stairs are a little harder to navigate than L stairs.
• It can be more difficult to add a handrail to these than some of the other types of stairs.
• Like L shaped stairs, a center support is typically required.

Spiral Stairs

Spiral stairs are a often confused with curved stairs. Although, both types of stairs follow a helical arc (like the shape of a spring), spiral stairs usually are made very compact and the treads radiate around a center pole.

Spiral Stairs

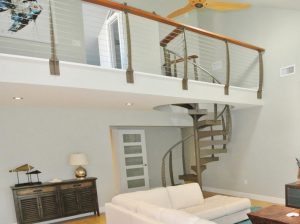

Example Spiral Stairs

Advantages of Spiral Stairs:

• One of the key advantages of spiral stairs is their compactness. They are very popular on beach front decks where space is at a premium. They are also used extensively on city lofts for the same reason.
• Spiral stairs can be attractive and there are may variations on railings styles which can have a major impact on the overall appearance of the stair.
• Since the center pole and landing typically provide the structural support for the stairs, they do not need much in the way of extra support structures making installation easier than many other types of stairs.

Disadvantages of Spiral Stairs:

• Spiral stairs are more difficult to navigate than other types of stairs. It is for this reason that codes do not allow them to be used as the primary access to a full second floor of a home. Walk ability improves as the outside diameter gets larger so if you have the space, you may want to consider going a bit larger. We recommend going 5 feet in diameter if you can.
• It is difficult to carry large items up spiral stairs.
• Only one person can go up or down the stairs at the same time.

Curved Stairs

Curved stairs add elegance to home or business. For this reason they are almost always located at the entry where it makes the best first impression. Curved stairs, like spiral stairs are helical however, they tend to be on a much larger radius and typically do not make a full circle.

Curved Staircase

Example Curved Stairs

Advantages of Curved Stairs:

• Curved staircases are often very elegant and traditional but this type of design can equally be adapted to contemporary designs.
• They are relatively easy to walk up (if the radius is large).

Disadvantages of Curved Stairs:

• Curved stairs are by far the most difficult to build of the various types of stairs. In fact building curved stairs represents a pinnacle of achievement for any stair builder or fabricator. For this reason, they are the most costly to build.

Ladders

Since the definition of a stair is a series of steps leading from one floor to another, we would be remiss if we did not include ladders.  Library ladders or loft ladders are becoming more popular to conserve space in smaller, sustainable designs.

Library Ladder

Advantages of Ladders:

• The most compact way to get from one floor to another.
• Very cost effective due to their simple design.
• Can have wheels or fold up to move them out of the way when not in use or to prevent access.
• Can be used to access shelves that would be to high too reach normally.

Disadvantages of Ladders:

• Ladders are the most difficult to climb, especially while descending.
• Can not be used as a primary staircase.
